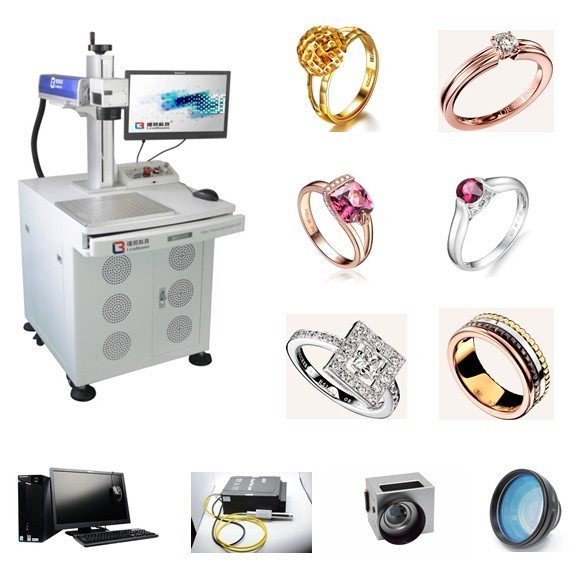

Surgical Knife Fiber Laser Marking Machine Stainless Steel Scoop Cup box Marking
Machine Profile
Fiber Laser Marking Machine adopted original fiber laser source and high speed galvanometer scanning system with stable power, excellent optical mode, beam with high quality, fast marking speed, good effects and high efficiency, it can meet the demand for mass production.
Applicable industry
1 Used in clothing materials, medicine packages, wine packages, building ceramics beverage packages, cut fabrics, rubber products, nameplates, crafts and gifts electronics and leather products.
2 The equipment is able to engrave clear and fine graphics. Moreover, it requires no consumables and has the advantages of consistent performance. The maintenance interval is more than 20,000 hours for the complete equipment.
Parameter of cnc fiber laser marking machine
| Model | LB-MF30-Fiber |
| Laser power | 30W |
| Laser Wavelength | 1064±10nm |
| Divergence | 0.3mard |
| Marking range | 100*100mm/300*300mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 10mm/s |
| Marking depth | 0 ~0.5mm |
| Engraving line speed | ≤15000mm/s |
| Repeatability accuracy | ±0.001mm |
| Beam quality | 1.2~1.8 |
| Marking Format | Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc. |
| Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| working voltage | 220V±10%/50Hz/4A |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or dust less |
| Working condition:Humidity | 5%-75%,free of condensed water |
| Laser module life | >100000 hours |
| Net weight | 125kg |
| Packing size | 700*900*1380mm |
Machine Features
a . Using the third generation of optical fiber solid laser, the electro-optical conversion efficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 100000 hours(Lamp pump YAG is around hundreds of hours, semiconductor is around 10000 hours).

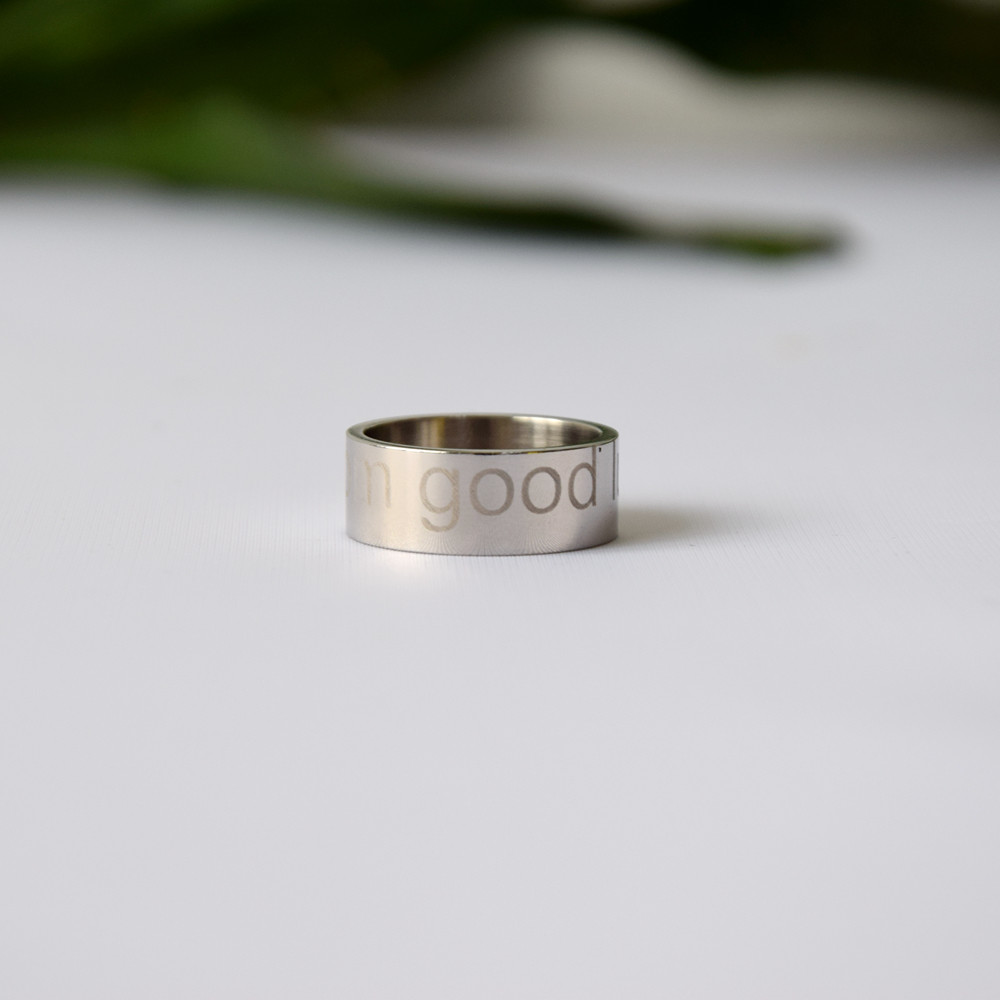

b . Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white,matte,chromatic...on the stainless steel.
c . Adopted imported high-speed scanning head, and combined with software makes engraving very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.
d . Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.
e . High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.
f . Absolutely environmental marks without intermediate mediators involved in processing, completely in conformity with ROHS Standards.
g . Integrated modularization design, convenient maintenance, and the small volume can save more space.
h . Support JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW and other documents, and can form the serial number,production date, bar code and QR code automatically.
i . Optional rotary workable and other automated matching system.
Advantages
1 . Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).
2 . High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.
3 . Air cooling smart machine,small size,almost no need after sales service.
